Using VS Code with PICO-8

Because indentation is always worth it

I like FaviconPICO-8, the fantasy console by Lexaloffle. It's really useful and cute whenever I feel like making small games. It's pretty good

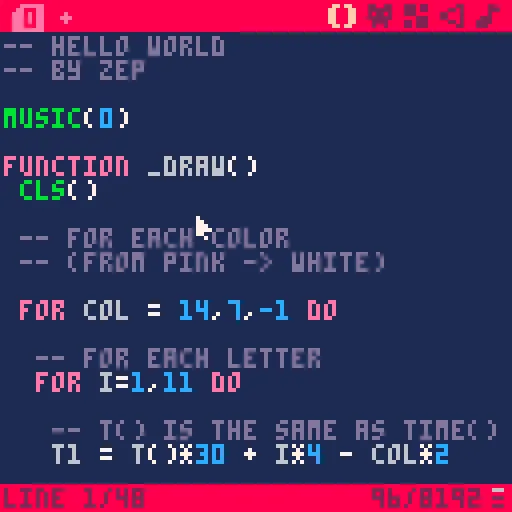

The PICO-8 code editor, its window is really small

The PICO-8 window. It's small

However, I despise programming in its window, it's really small, promote bad code design due to its restrictions and well, overall isn't that comfortable. Over the years, I got really used to having my code on one screen and the result on the other but this unfortunately isn't possible with PICO-8. I think promoting faster iterations would be really beneficial since it's often used for fast prototyping or jams but hey, I'm not the devs 🤷‍♀️

So, in order to achieve this unofficially, I wrote myself a quick and dirty post-save script to automatically build a .p8 file out of a folder of lua files that can be edited outside PICO-8. Additionally, it reloads PICO-8 so the changes appear instantly! (You can also run it instantly on save in VS Code, see Auto-reload on save)


for f in $1/*.lua; do
((i++)) && ((i!=1)) && echo "-->8";
cat $f;
project_name=`basename "$1"`.p8
sd -f gsm "(?:__lua__)(.*)(?:__gfx__)" "__lua__\nREPLACE\n__gfx__" "$HOME/.lexaloffle/pico-8/carts/$project_name"
sd -s "REPLACE" "${result}" "$HOME/.lexaloffle/pico-8/carts/$project_name"
sleep 0.2
swaymsg '[class="pico8"] focus' && sleep 0.1 && ydotool key ctrl+r


The script takes for sole parameter the folder name to operate in and use it to determine the name of the cart, therefore your folder must have the same name as your cart. The script won't create the cart for you, you'll have to create it yourself through PICO-8 or other tools first

The .lua files are added by alphabetic order, a good way to use this is by prefixing your files with numbers, ex: 00-main.lua, 01-visuals.lua etc. Also the script automatically adds -->8 between the pages as to make a tab per file in PICO-8, this is harmless and doesn't change behavior in any way, it's purely cosmetical


For the cart building part

And for the auto-reload

Syntax coloration and snippets

The script is great, it allows us to work in VS Code but the experience isn't that integrated yet. We don't have coloring, snippets and other goodies

In order to get those in .p8 files there's this extension that's available and works perfectly but it won't work out of the box in our case because not only we're not working in .p8 files, we're also missing the markers the extension check for before enabling itself

Let's do a little bit of hacking to fix that:

  • Go to the extension folder in your VS Code installation (On Linux that's ~/.vscode/extensions/grumpydev.pico8vscodeeditor-version)
  • In syntaxes/lua.tmLanguage.json remove the begin and end property in patterns

Voilà! The extension now enable itself without needing the markers normally used in .p8 files. Don't forget to set the languages of your .lua files properly in VS Code (see Auto-assign correct language to .lua files for a way to do this automatically) and you should be up and ready!

Bonus tips and tricks

Auto-reload on save

Out of the box VS Code doesn't allow to run actions on save outside of making an extension for it. Luckily, an extension called Run On Save exist for that

With the following config added to your workspace settings, the script will automatically run whenever you save, pretty cool huh

"emeraldwalk.runonsave": {
"commands": [
"match": ".lua",
"cmd": "bash ${workspaceFolder}/ ${fileDirname}"

Change for the name you used for the script file. I would recommend avoiding using auto-save with this (or at least, use a bit delay if using it) as it's very easy for PICO-8 to bug out a bit with it

Auto-assign correct language to .lua files

Thanks to the files.associations setting, you can make it so the proper language is used by default for .lua files

"files.associations": {
"**/*.lua": "pico8p8"

Windows version

I also built a Windows version using Powershell and AutoHotKey, it doesn't work as well as the Linux version does for some reasons but still, it (mostly) does its job

Terminal window
$projectName = ([io.fileinfo]$args[0]).BaseName
$fileDir = $args[0] + "/*.lua"
$result = Get-Content $fileDir | Out-String
$p8Path = $env:APPDATA + "/pico-8/carts/inktober/" + $projectName + ".p8"
(Get-Content -path $p8Path -Raw) -replace '(?ms)(?:__lua__)(.*)(?:__gfx__)', "__lua__`n$result`n__gfx__" | Set-Content -Path $p8Path
Start-Sleep -Milliseconds 300
Start-Process .\reload-pico8.exe

And to reload PICO-8, this AHK script was used:

if WinExist("ahk_exe pico8.exe")
WinActivate ; use the window found above
SendInput, ^{r}
WinActivate, ahk_exe Code.exe

The Powershell script assume the AHK script is compiled and saved in the same folder under the name reload-pico8.exe

The usage is the same as the Linux version (see Usage) however unlike the Linux version, it doesn't separate the files in multiple PICO-8 tabs

Possible improvements

  • Use only one call to sd, the reason why it uses two is that I couldn't figure out a way to do it in one call that didn't break whenever escape codes were used in the Lua code
  • Remove the two calls to sleep. I don't think they are needed, perhaps a bit of delay is needed but probably not that much on Linux
